| Photo | Series | Output | Size | Pulse/Detent | Switch Travel | Operating Life | Catalog |
|---|---|---|---|---|---|---|---|
 |

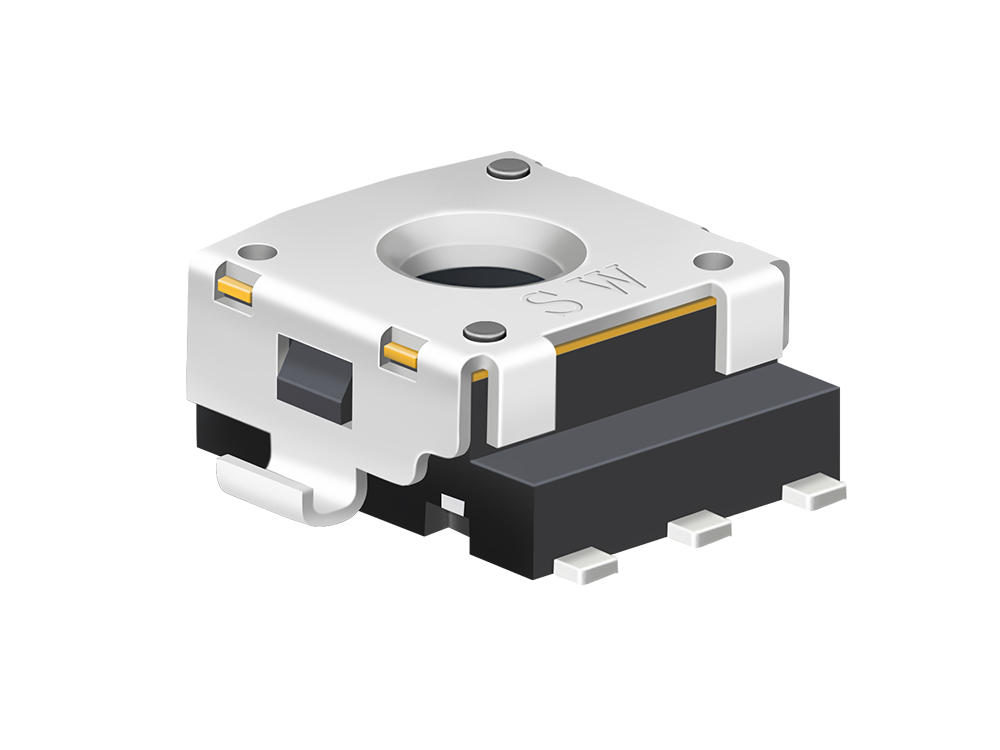

EC05_03 Series | DC 5V | φ5.8mm | 12/12 | N/A | Rotational life : 30,000 cycles | EC05 Hollow Shaft Encoder.pdf |
 |
EC05_04 Series | DC 5V | φ5.8mm | 12/12 | N/A | Rotational life : 100,000 cycles | EC05 Through Shaft Encoder.pdf |
 |
EC06 Series | DC 5V | φ6.6mm | 6/12 | 0.2 mm | Rotational life : 20,000 cycles Push operating life: 20,000 cycles |
EC06 Rotary Encoder.pdf |
 |
EC0901 Series | DC 5V | φ9.5mm | 10/20 | 0.5mm | Rotational life : 30,000 cycles Push operating life: 20,000 cycles |
EC09 Rotary Shaft Encoder.pdf |
 |
EC0902 Series | DC 5V | φ9.5mm | 12/24 | 0.5mm | Rotational life : 20,000 cycles Push operating life: 10,000 cycles |
EC09 Rotary Encoder Switch.pdf |
 |
EC10 Series | DC 5V | φ9.8mm | 6/12 12/12 12/24 |
N/A | Rotational life : 100,000 cycles | EC10 Encoder Through Shaft.pdf |
 |
EC11 Series | DC 5V | φ11mm | 15/0 15/30 20/0 20/20 8/16 9/18 12/24 16/32 16/16 24/24 |
0.5 / 1.5 mm | Rotational life : 30,000 cycles Push operating life: 20,000 cycles |
EC11 Encoder Rotary.pdf |
 |
EC12 Series | DC 5V | φ13mm | 12/0 12/12 18/0 18/18 24/0 24/24 12/24 15/30 |
0.5mm | Rotational life : 30,000 cycles Push operating life: 20,000 cycles |
EC12 Insulated Shatf Encoder.pdf |
 |
EC16 Series | DC 5V | φ13mm | 12/0 12/12 24/0 24/24 12/24 |
0.5mm | Rotational life : 30,000 cycles Push operating life: 20,000 cycles |
EC16 Rotary Encoder.pdf |
 |
EC18 Series | DC 5V | φ17.5mm | 9/18 | N/A | Rotational life : 50,000 cycles | EC18 Hollow Shaft Rotary Encoder.pdf |
 |
EC21 Series | DC 5V | φ21.6mm | 15/30 10/20 |
N/A | Rotational life : 50,000 cycles | EC21 Hollow Shaft Rotary Encoder.pdf |
 |
EC25 Series | DC 5V | φ23.6mm | 10/20 20/20 |
N/A | Rotational life : 50,000 cycles | EC25 Hollow Shaft Rotary Encoder.pdf |
 |
EC28 Series | DC 10V | φ28mm | 15/30 18/18 |
N/A | Rotational life : 50,000 cycles | EC28 Hollow Shaft Rotary Encoder.pdf |
 |
EC33 Series | DC 10V | φ33.8mm | 24/24 | N/A | Rotational life : 100,000 cycles | EC33 Hollow Shaft Rotary Encoder.pdf |
 |
EC35 Series | DC 10V | φ35mm | 10/30 15/30 20/20 18/18 |
N/A | Rotational life : 50,000 cycles | EC35 Hollow Shaft Rotary Encoder.pdf |
 |
EC40 Series | DC 5V | φ39.6mm | 14/14 | N/A | Rotational life : 30,000 cycles | EC40 Hollow Shaft Rotary Encoder.pdf |
 |
EC43 Series | DC 5V | φ43mm | 20/20 | N/A | Rotational life : 30,000 cycles | EC43 Hollow Shaft Rotary Encoder.pdf |
 |
EG47 Series | N/A | φ47mm | 9/18 | N/A | Rotational life : 100,000 cycles | EG47 Hollow Shaft Optical Encoder.pdf |
 |
EC50 Series | DC 5V | φ50mm | 9/18 | N/A | Rotational life : 40,000 cycles | EC50 Hollow Shaft Rotary Encoder.pdf |
 |
EC56 Series | DC 5V | φ56.5mm | 15/30 | N/A | Rotational life : 50,000 cycles | EC56 Hollow Shaft Rotary Encoder.pdf |
 |
EC60 Series | DC 10V | φ60mm | 15/30 | N/A | Rotational life : 30,000 cycles | EC60 Hollow Shaft Rotary Encoder.pdf |
 |
EC65 Series | DC 10V | φ65mm | 15/30 | N/A | Rotational life : 50,000 cycles | EC65 Hollow Shaft Rotary Encoder.pdf |
 |
ES16 Series | DC 12V | φ16.2mm | 12/12 16/16 |
N/A | Rotational life : 30,000 cycles | ES16 Absolute Encoder.pdf |
 |
ES1801 Series | DC 12V | φ18mm | 24/24 | N/A | Rotational life : 30,000 cycles | ES18 Absolute Encoder.pdf |
 |
ES1802 Series | DC 10V | φ18.8mm | 16/16 | N/A | Rotational life : 30,000 cycles | ES18 Absolute Rotary Encoder.pdf |
