Soundwell 100mm Motorized Slide Potentiometer

MOQ 2000Get Latest Price
Main Specifications

Maximum operating voltage: 200V AC;

Motor working voltage: 6V~10V DC;

Operating torque: 20~60gf.cm

Operating temperature: -10℃ ~60℃;

Sliding travel: 100mm±0.5mm;

Operating life: 30,000 Min

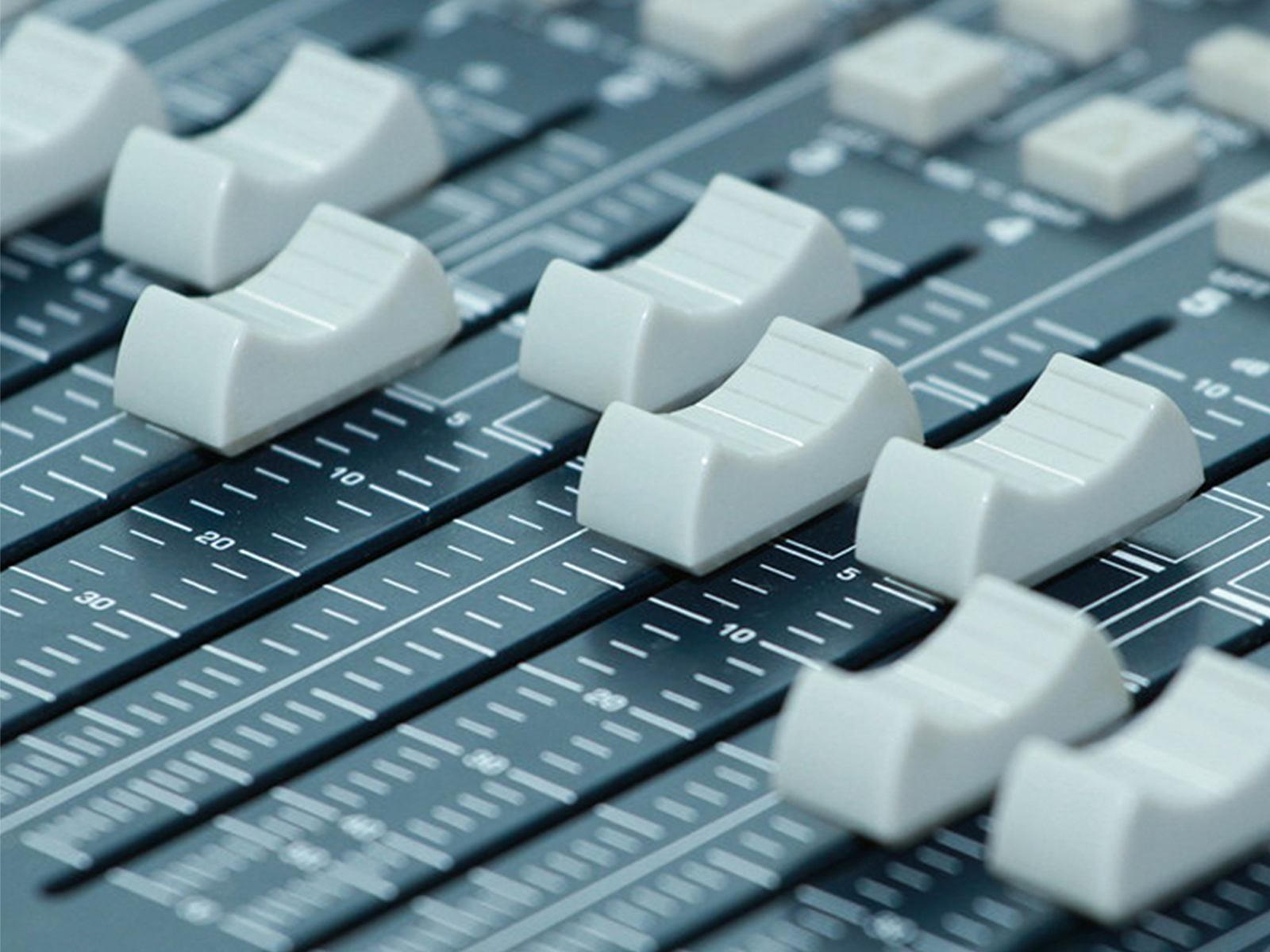

Applications Digital mixing consoles, pianos, 3D display devices, stage sound, health care, appliances and other related electronic devices.
Product Features

Motor-driven slide potentiometer with reliable performance and high endurance;

Touch sense function Incorporated;

Available in many different variants.

Functions

Product Details

Company profile

FAQ

Inquiries about products

MECHANICAL CHARACTERISTIC

1. Rotational Torque: 20~60gf.cm

2. Sliding Travel: 100mm±0.5mm

3. Lever Stop Strength: ≥5Kgf.cm

4. Lever Wobble (mm p-p): 1.6mm Max

ELECTRICAL CHARACTERISTIC

1. Total Resistance Range: 10KΩ±20%

2. Resistance Taper: 0B

3. Rated Power: 0.5W

4. Maximum Operating Voltage: AC 200V

5. Insulation Resistance: 100MΩ 1 Minute at DC 250V

6. Dielectric Voltage: 1 Minute at AC 250V

7. Motor Working Voltage: 6V~10V DC

8. Touch Sense Track: With

ENDURANCE CHARACTERISTIC

1.Operating life: 30,000 cycles Min


Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".

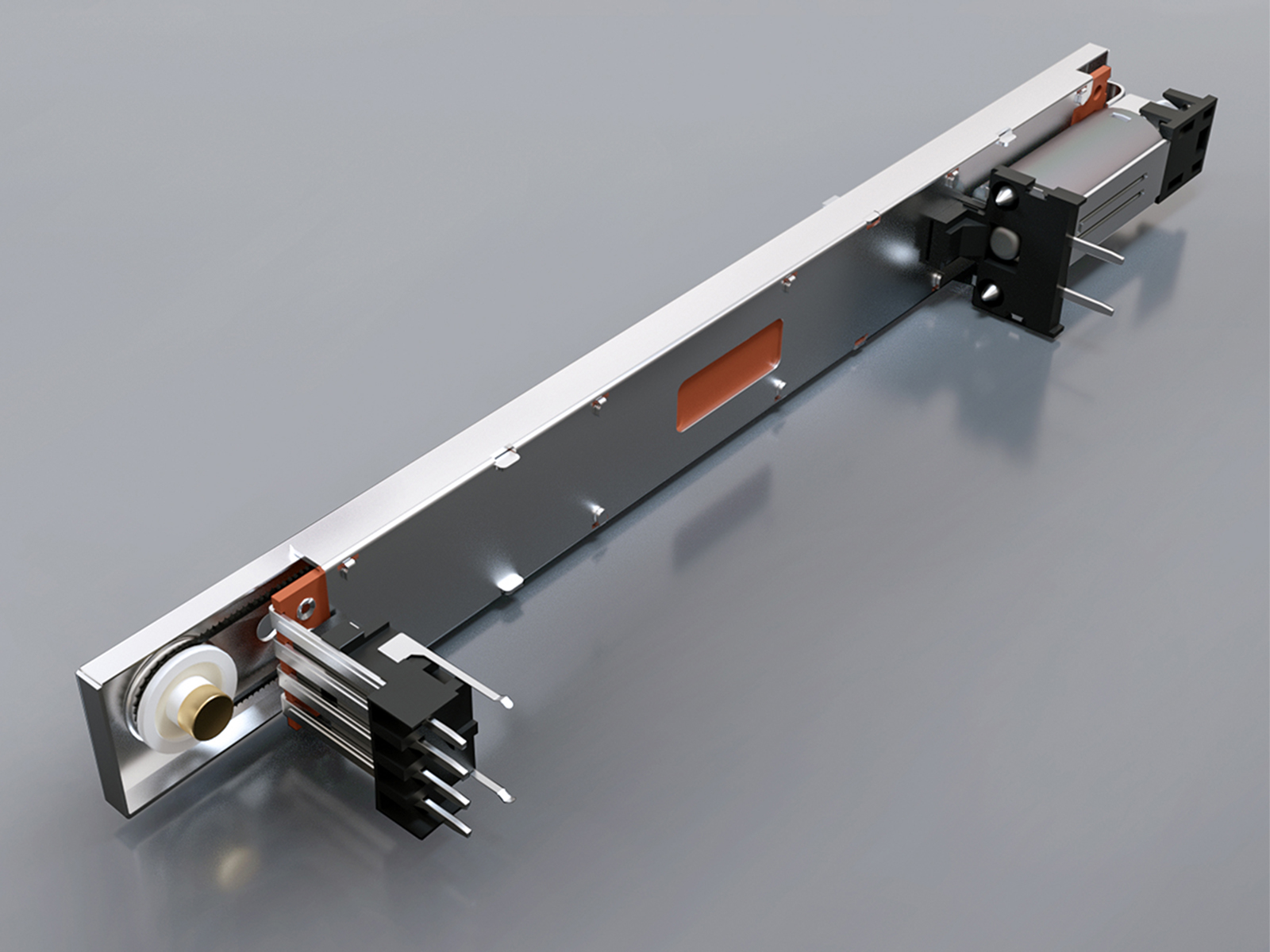

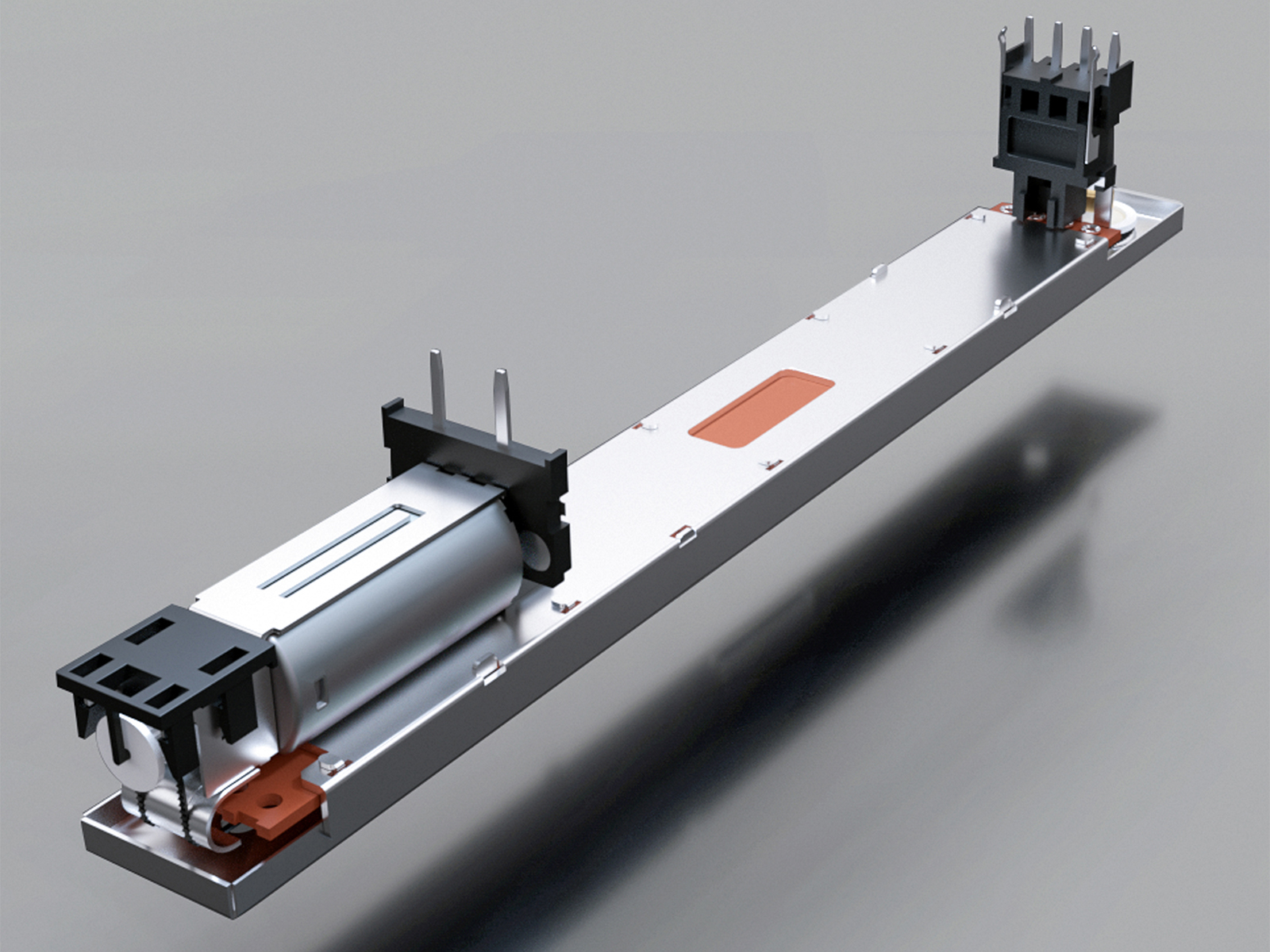

100mm motorized slide potentiometer


100mm slide potentiometer


We arepotentiometers manufacturer,have many travel of slide potentiometer , contact us for you quickly recommended selection.



slide potentiometer



If you need more details about the electrical and specification parameters, please leave a message below or contact us.

About Soundwell

Soundwell, the compiling manufacturer of national standards for potentiometer and industrial standards for encoder, is leading the industry with its rich project experience and strong production and research capabilities. Owning to our product diversification, Soundwell tops the industry with a total selection of over 70,000 different specifications.


Products are widely used in automotive electronics, white appliances, black appliances, smart home, electronic and mechanical equipment smart office equipment, audio and video equipment, smart medical, smart wearable and other fields.


The company can provide customized products and services for different customers, provide customers with one-stop solutions, to meet the needs of customers.
